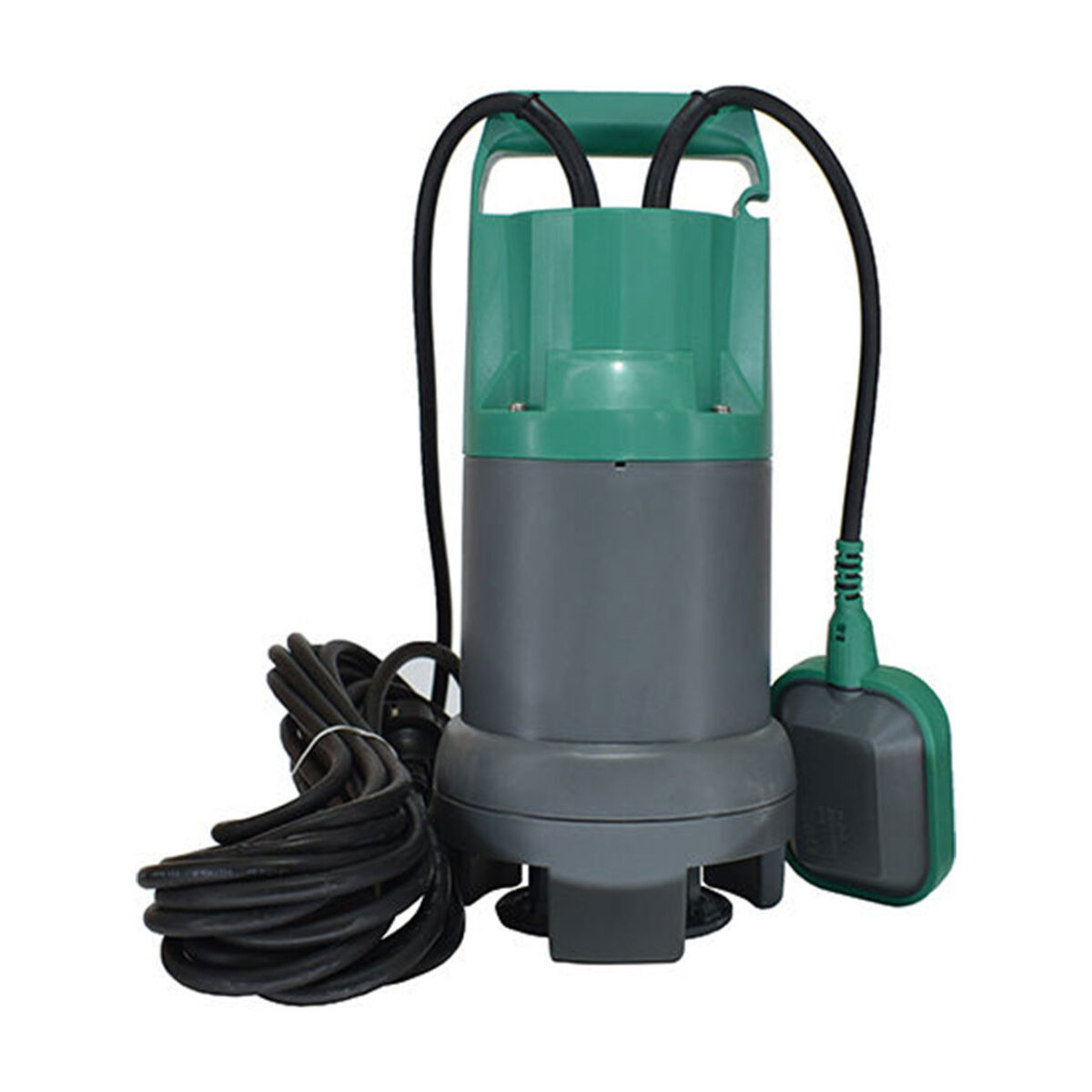

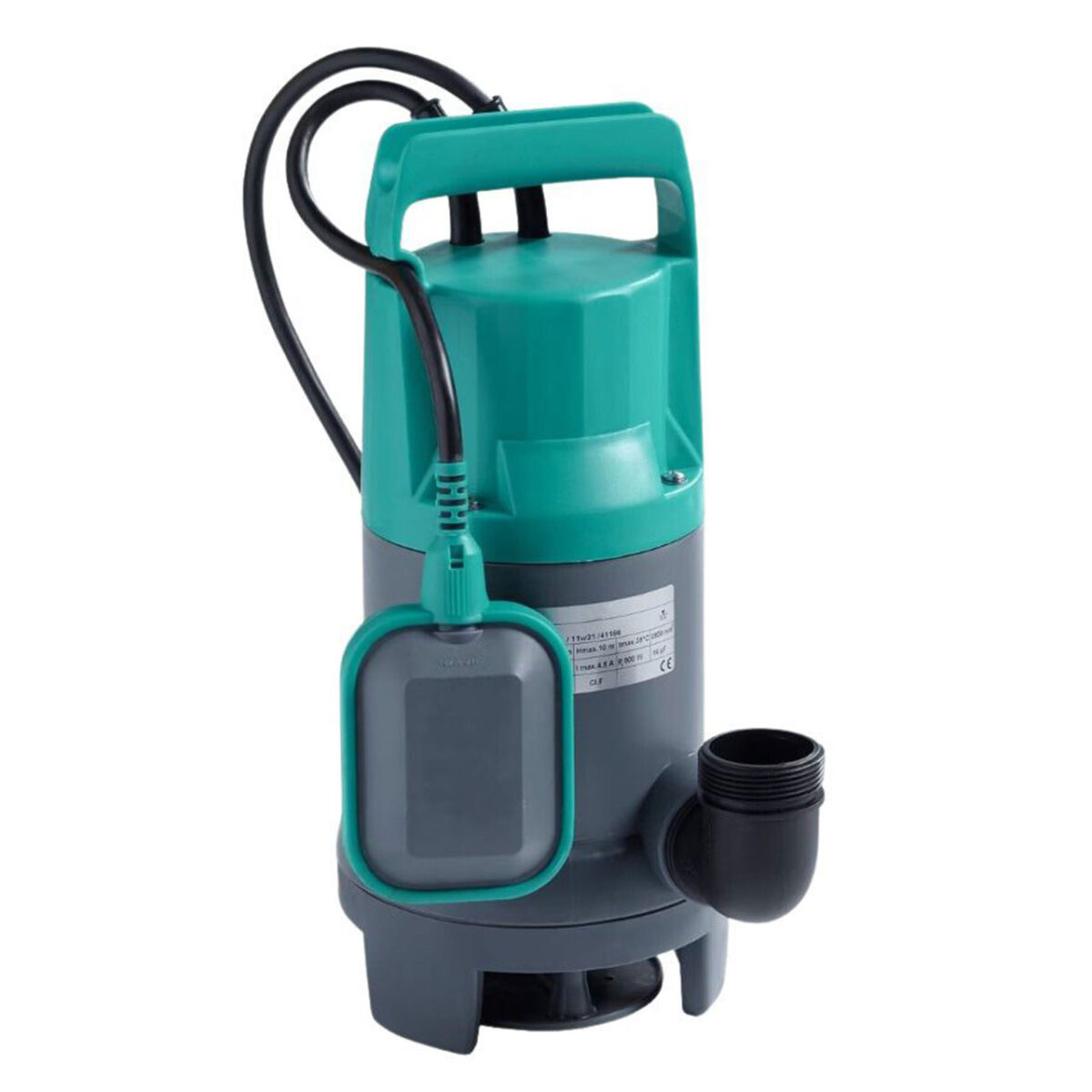

Wilo Initial WASTE 14-9/523/AEF-10M, 10-meter cable, submersible sewage pump

Submersible pump for transportable wet installation in intermittent operation.

For pumping in residential areas:

  • Wastewater without sewage
  • Dirty water (with small amounts of sand and gravel)

Submersible pump with a vortex impeller and a vertical discharge port with threaded connection (male thread). Pump housing and impeller made of composite material. Surface-cooled single-phase AC motor (operating capacitor integrated) with self-switching thermal motor monitoring and a rotary shaft seal. Motor housing made of steel. Connection cable with a float switch and a shockproof plug.

Product Code: 4168022

Wilo is a globally recognized company in the field of pump technology and pumping systems. With many years of experience in the market, Wilo offers advanced solutions for efficient and environmentally friendly water management in various sectors, including residential, industrial, and public buildings. With a philosophy of innovation and high quality, Wilo continues to evolve to meet the needs of the future hydraulic and pumping sector.

If the order amount is over 200 euros, delivery is free.

If the product is available:

  • Delivery is made within 1-3 business days from the date of order confirmation.

If the product is not available:

  • The delivery time for backordered products ranges from 4 to 12 weeks. The final terms will be discussed with you and agreed upon in the delivery contract upon order confirmation. In this case, a 100% prepayment is required.

You can pay using any preferred method:

  • Payment by card online through the PayPal payment system.
  • Payment via any bank according to the issued invoice.

The receipt must be kept - this is very important and not just when purchasing sanitary ware. You will receive a tax receipt from us.

Hydraulic elements

  • Maximum operating pressure PN: 3 bar
  • Discharge port: G 1½
  • Hydraulics type: Vortex impeller
  • Free passage of solid particles in the hydraulic system: 20 mm
  • Maximum immersion depth: 5 m
  • Optimal delivery head Hopt: 635,9 kPa
  • Optimal volume flow Qopt: 10,27 m³/h
  • Minimum liquid temperature Tmin: 5 °C
  • Maximum liquid temperature Tmax: 35 °C
  • Minimum ambient temperature Tmin: 3 °C
  • Maximum ambient temperature Tmax: 35 °C

Motor data

  • Electrical connection: 1~230 V, 50 Hz
  • Voltage tolerance: ±5 %
  • Rated power P2: 0,65 kW
  • Input power P1 max: 900 W
  • Rated current I: 4,5 A
  • Starting current I: 0 A
  • Starting method: Direct Online (DOL)
  • Nominal speed n: 2900 /min
  • Maximum starting frequency t: 60 1/h
  • Motor design: Submersible motor – surface-cooled
  • Insulation class: F
  • Protection rating: IP68
  • Operating mode (submersible): S1
  • Operating mode (emergent): S3-25%
  • Number of poles: 2

Cable

  • Length of connecting cable: 4 m
  • Type of cable: H07RN-F
  • Cable cross-section: 3G1 mm²
  • Connection plug: CEE7/7 (Schuko)
  • Type of connection cable: Non-detachable

Equipment/Operation

  • Float switch: Yes
  • Explosion protection type: No
  • Motor protection: Bimetal
  • Motor, leakage detection: No
  • Sealing chamber, leakage detection:No
  • Leakage chamber, leakage detection: No

Materials

  • Pump casing: PP
  • Impeller: PA6-GF30
  • Seal material in the pump: NBR
  • Seal material: NBR
  • Motor material: Stainless steel

Installation dimensions

  • Connection to the discharge pipe: G 1¼

Product Data

  • Manufacturer: Wilo
  • Product Name: Initial WASTE 14-9/523/AEF-10M
  • Product Code: 4168022
  • EAN Number: 4048482250847
  • Color: Πράσινο/Γκρι
  • Minimum order quantity: 1

Dimensions and weights

  • Length with packaging: 230 mm
  • Length L: 157 mm
  • Height with packaging: 397 mm
  • Height H: 360 mm
  • Width with packaging: 200 mm
  • Width W: 157 mm
  • Gross weight per m: 6,4 kg
  • Net weight per m: 6 kg
