SUBMERSIBLE PUMP TMW 32/11-A 11/4 FOR CLEAN AND RAINWATER 4048414 WILO
Wilo TMW 32/11-A 11/4 Submersible Pump for Clean and Rainwater
359,28 €
4-10 ημέρες
4-10 ημέρες
Μπορείτε να παραλάβετε τα προϊόντα σας από το φυσικό μας κατάστημα κατά τις ώρες λειτουργίας:
🕘 Δευτέρα & Τετάρτη: 09:00 – 17:00
🕘 Τρίτη, Πέμπτη & Παρασκευή: 09:00 – 20:00
🕘 Σάββατο: 09:00 – 15:00
Επιλέξτε «Παραλαβή από το Κατάστημα» κατά την ολοκλήρωση της παραγγελίας σας και περάστε να τα παραλάβετε στον χρόνο που σας εξυπηρετεί.
Θα χαρούμε να σας εξυπηρετήσουμε από κοντά!
Στο Watermart φροντίζουμε ώστε κάθε παραγγελία να εκτελείται με ακρίβεια, ταχύτητα και ασφάλεια. Τα προϊόντα συσκευάζονται προσεκτικά και αποστέλλονται άμεσα, ώστε να τα παραλάβετε το συντομότερο δυνατό.
Αν για οποιονδήποτε λόγο δεν είστε απόλυτα ικανοποιημένοι από την αγορά σας, μπορείτε να επικοινωνήσετε μαζί μας εντός 15 ημερών από την ημερομηνία παραλαβής, ώστε να οργανώσουμε τη διαδικασία επιστροφής.
Ανάλογα με την περίπτωση, προχωρούμε σε αντικατάσταση προϊόντος ή επιστροφή χρημάτων, σύμφωνα με την πολιτική επιστροφών μας.
Η εμπιστοσύνη σας είναι πολύτιμη για εμάς και η ικανοποίησή σας αποτελεί σταθερή μας προτεραιότητα.
Η σωστή φροντίδα των ειδών υδραυλικής και υγιεινής συμβάλλει στη διατήρηση της απόδοσης και της αισθητικής τους για πολλά χρόνια.
Συνιστούμε τακτικό καθαρισμό με μαλακό πανί και ήπιο καθαριστικό, κατάλληλο για την επιφάνεια του προϊόντος. Αποφύγετε λειαντικά σφουγγάρια, ισχυρά χημικά ή καθαριστικά που περιέχουν οξέα και χλώριο, καθώς ενδέχεται να προκαλέσουν φθορά ή αλλοίωση στο φινίρισμα.
Ελέγχετε περιοδικά τις συνδέσεις και τη σωστή λειτουργία των προϊόντων για τυχόν διαρροές ή δυσλειτουργίες. Σε περίπτωση αμφιβολίας, προτείνεται η συμβουλή εξειδικευμένου τεχνικού.
Με την κατάλληλη συντήρηση, τα προϊόντα σας θα διατηρήσουν την ποιότητα, την εμφάνιση και τη λειτουργικότητά τους στο χρόνο.

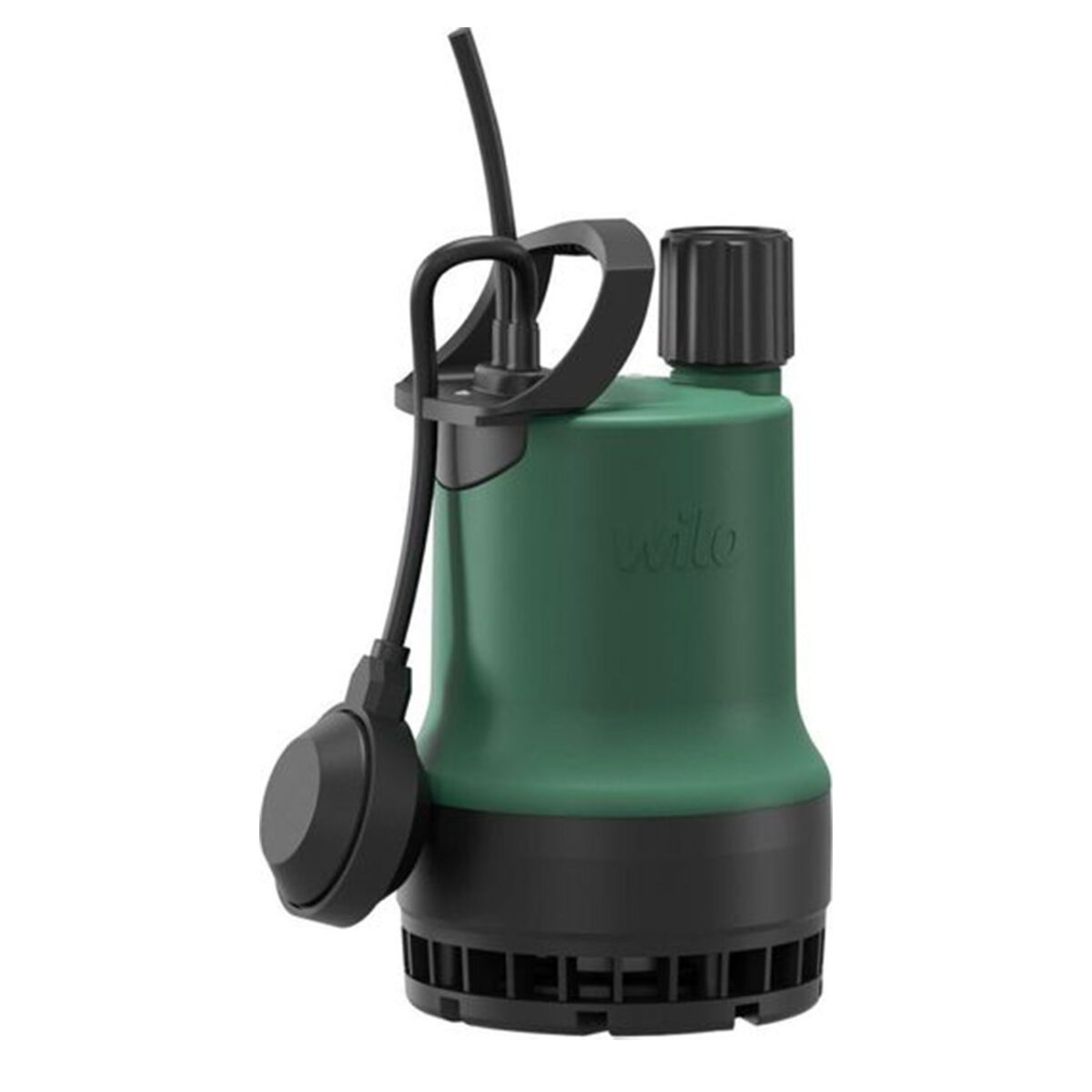

Wilo TMW 32/11-A 11/4, 10-meter cable, submersible pump for clean and rainwater
Submersible pump for fixed and portable wet installation within a sump. The pump features an integrated float switch for fully automated operation.
For pumping in residential areas:
- Wastewater without sewage
- Dirty water (with small amounts of sand and gravel)
Sewage pump with integrated turbulator (twister function), open multi-channel impeller and vertical threaded connection. Pump housing, strainer and impeller made of composite material. 1~ motor (jacket cooling) with integrated operating capacitor and self-switching thermal motor monitoring. Stainless steel motor housing. Oil-filled sealing chamber with double sealing: a rotary shaft seal is installed on the motor side, a mechanical seal on the pump side. Connection cable with float switch and fitted plug (CEE 7/7).
Product Code: 4048414
If the order amount is over 200 euros, delivery is free.
If the product is available:
- Delivery is made within 1-3 business days from the date of order confirmation.
If the product is not available:
- The delivery time for backordered products ranges from 4 to 12 weeks. The final terms will be discussed with you and agreed upon in the delivery contract upon order confirmation. In this case, a 100% prepayment is required.
You can pay using any preferred method:
- Payment by card online through the PayPal payment system.
- Payment via any bank according to the issued invoice.
The receipt must be kept - this is very important and not just when purchasing sanitary ware. You will receive a tax receipt from us.
Hydraulic elements
- Maximum operating pressure PN: 2 bar
- Type of impeller design: Multichannel impeller, open type
- Free passage of solid particles in the hydraulic system: 10 mm
- Maximum immersion depth: 1 m
- Minimum liquid temperature Tmin: 3 °C
- Maximum liquid temperature Tmax: 35 °C
- Minimum ambient temperature Tmin: 3 °C
- Maximum ambient temperature Tmax: 35 °C
Motor data
- Electrical connection: 1~230 V, 50 Hz
- Voltage tolerance: ±10 %
- Power factor: 0,93
- Rated power P2: 0,55 kW
- Input power P1 max: 750 W
- Rated current I: 3,6 A
- Starting current I: 9,8 A
- Starting method: Direct Online (DOL)
- Nominal speed n: 2900 /min
- Maximum starting frequency t: 50 1/h
- Insulation class: F
- Protection rating: IP68
- Operating mode (submersible): S1
- Operating mode (emergent): S3-25%
Cable
- Length of connecting cable: 4 m
- Type of cable: H07RN-F
- Cable cross-section: 3G1 mm²
- Connection plug: CEE7/7 (Schuko)
- Type of connection cable: Non-detachable
Equipment/Operation
- Float switch: Yes
- Explosion protection type: No
- Motor protection: Bimetal
Materials
- Pump casing: PP-GF30
- Impeller: PPE/PS-GF20
- Seal material in the pump: BQ1PFF
- Seal material on the motor side: NBR
- Seal material: NBR
- Motor material: Stainless steel
Installation dimensions
- Connection to the discharge pipe: G 1¼
Product Data
- Manufacturer: Wilo
- Product Name: Drain TMW 32/11
- Product Code: 4048414
- EAN Number: 4016322477433
- Color: Green/Black
- Minimum order quantity: 1

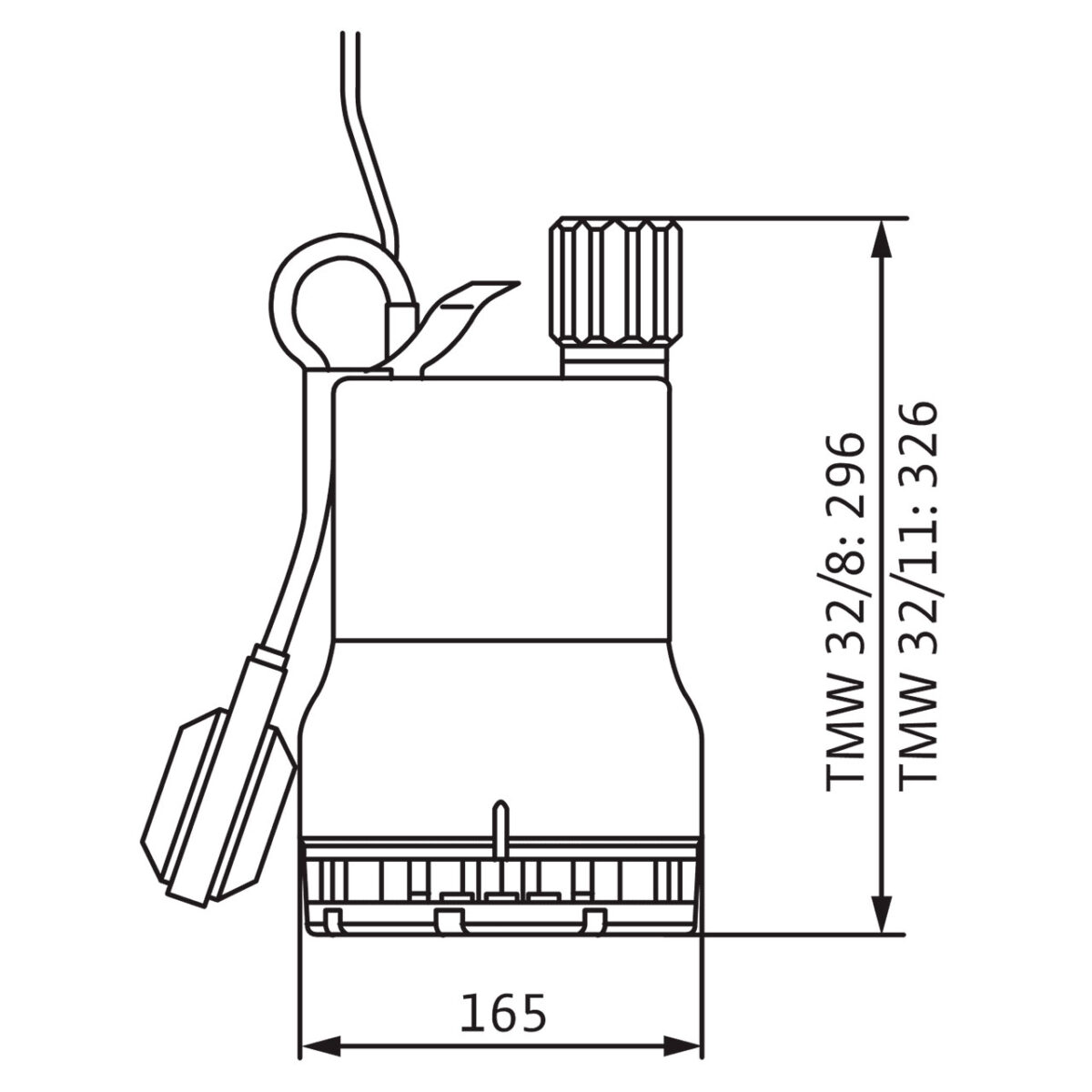

Dimensions and weights
- Length with packaging: 195 mm
- Length L: 165 mm
- Height with packaging: 367 mm
- Height H: 326 mm
- Width with packaging: 195 mm
- Width W: 165 mm
- Gross weight per m: 6,8 kg
- Net weight per m: 6,3 kg
| Weight | 8,84 kg |
|---|---|
| Dimensions | 16,5 × 16,5 × 32,6 cm |
| Brand | Wilo |
